K28 SERIES
TOPS & LEGS

Up to $75K finance available. Details ➚

TIP: Adding products to cart gains you access to prices including GST. 🙂

TIP: Click “SHOW PRODUCT DETAILS ▼” to see more info on each item.

Product	SKU	INFO	Base Price	Customise	SUBTOTAL	Quantity

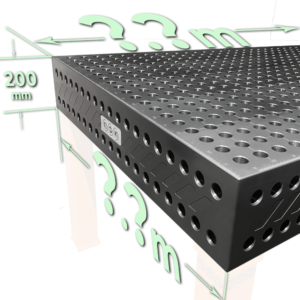

K28 Series Top - Custom Size Choose your custom size: In 100mm increments - between 0.5m x 1.0m all the way up to 3.0m x 1.6m! MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-00	Custom size: In 100mm increments from 1.0m x 0.5m to 3.0m x 1.6m.	$0 Ex. GST	QUOTE REQUEST K28 Series Top - Custom Size quantity	$0	K28 Series Top - Custom Size quantity

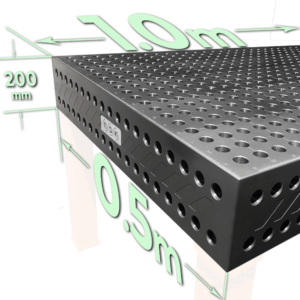

K28 Series Top - 1.0m x 0.5m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-01	All Holes: Rounded Size: 1000 x 500mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~225kg	$1,550 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 1.0m x 0.5m quantity	$1,550	K28 Series Top - 1.0m x 0.5m quantity

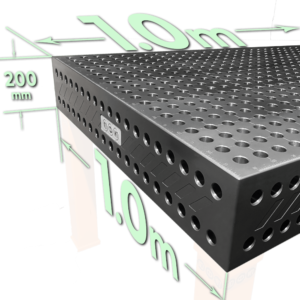

K28 Series Top - 1.0m x 1.0m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-02	All Holes: Rounded Size: 1000 x 1000mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~345kg	$2,800 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 1.0m x 1.0m quantity	$2,800	K28 Series Top - 1.0m x 1.0m quantity

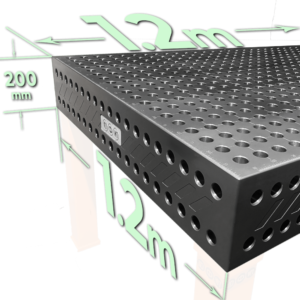

K28 Series Top - 1.2m x 1.2m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-08	All Holes: Rounded Size: 1200 x 1200mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~420kg	$3,200 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 1.2m x 1.2m quantity	$3,200	K28 Series Top - 1.2m x 1.2m quantity

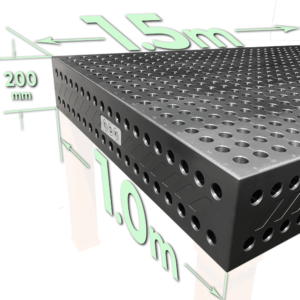

K28 Series Top - 1.5m x 1.0m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-03	All Holes: Rounded Size: 1500 x 1000mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~480kg	$3,650 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 1.5m x 1.0m quantity	$3,650	K28 Series Top - 1.5m x 1.0m quantity

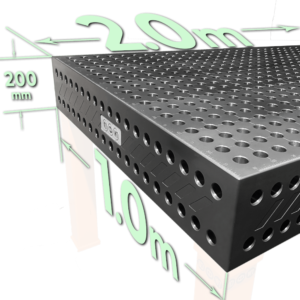

K28 Series Top - 2.0m x 1.0m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-04	All Holes: Rounded Size: 2000 x 1000mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~655kg	$4,400 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 2.0m x 1.0m quantity	$4,400	K28 Series Top - 2.0m x 1.0m quantity
K28 Series Top - 1.5m x 1.5m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-05	All Holes: Rounded Size: 1500 x 1500mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~725kg	$4,800 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 1.5m x 1.5m quantity	$4,800	K28 Series Top - 1.5m x 1.5m quantity

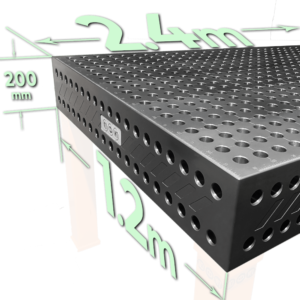

K28 Series Top - 2.4m x 1.2m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-06	All Holes: Rounded Size: 2400 x 1200mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~870kg	$6,250 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 2.4m x 1.2m quantity	$6,250	K28 Series Top - 2.4m x 1.2m quantity

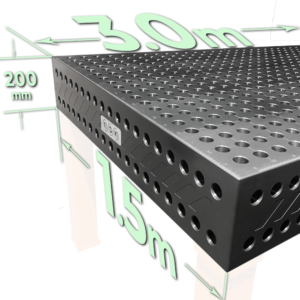

K28 Series Top - 3.0m x 1.5m MATERIAL: CAST or STEEL? 1) T300 - CAST IRON *PROPERTIES:* High quality sand resin cast, more superior than vacuum cast. Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and engraving lines are rougher (see picture below). *HARDNESS:* Differs per treatments: Standard / Burnished ~240HV \| Nitriding ~450HV. *DENSITY:* 7.25 g/cm³. *TENSILE STRENGTH:* 345 MPa. COMPARE SURFACE OF MATERIALS: 2) S355 - STEEL *PROPERTIES:* Smooth surface, increased hardness (especially with nitriding treatment), cleaner ruler and grid etchings. *HARDNESS:* Differs per treatments: Standard / Burnished ~250HV \| Nitriding ~550HV. *DENSITY:* 7.80 g/cm³. *TENSILE STRENGTH:* 355 MPa. TREATMENT: NONE or BURNISHED or NITRIDING? 1) NONE - No surface treatment, raw material (silver in colour). *BENEFITS:* Shiny silver colour. *HARDNESS:* Cast Iron ~230HV \| Steel ~240HV. 2) BURNISHED - Oxidation treatment (black in colour). *BENEFITS:* Rust resistant. HARDNESS: Cast Iron ~230HV \| Steel ~240HV. 3) PLASMA NITRIDING - Ion Nitriding Treatment (black in colour). BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant. HARDNESS: Cast Iron ~450HV \| Steel ~550HV. HOLE GRID: STANDARD or DIAGONAL or 50mm? Standard, has a hole spacing of 100mm. Diagonal, has an extra hole in the centre compared to the Standard. 50mm, has a whopping 9 holes per 100mm² - allowing for even more clamping and fixing possibilities! TOLERANCES *FLATNESS:* ±0.1mm over 1 m². *HOLE DISTANCE:* ±0.05mm. *HOLE DIAMETER:* +0.05mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-TBL-07	All Holes: Rounded Size: 3000 x 1500mm Side Grid: 50 x 100mm All Corners: Rounded Weight: ~1365kg	$7,950 Ex. GST	MATERIAL TREATMENT TOP HOLE GRID RULER / SCALE K28 Series Top - 3.0m x 1.5m quantity	$7,950	K28 Series Top - 3.0m x 1.5m quantity

LEGS

Levelling feet or movable levelling castors?

TIP: Click SHOW MORE to see more details on each product.

Product	SKU	INFO	BASE PRICE	Customise	SUBTOTAL

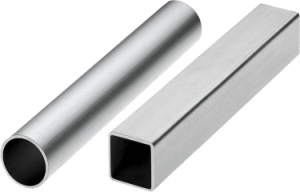

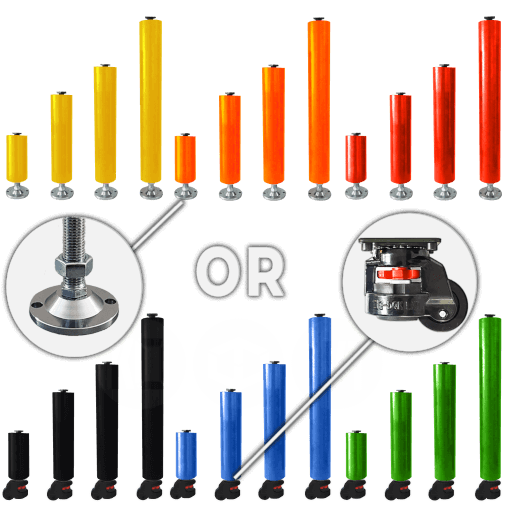

Custom Height/Colour/Shape Legs \| K28 NOTE: 4 x LEGS SUIT ALL TABLES EXCEPT 1.2m x 2.4m (6 LEGS) & 1.5m x 3m (8 LEGS). Colours above are to be used as a visual representation only, product colour may vary. LET US KNOW WHAT YOU’RE AFTER, AND WE’LL MAKE IT HAPPEN! ADJUSTABLE DISCS *PROPERTIES:* Pre-installed w/ disc footing and made from high tensile steel, this option is perfect for those requiring up to 60mm of adjustment, making it ideal for levelling your table on uneven floors. Pre-drilled holes are included for those who prefer to anchor the table with dynabolts: LEVELING CASTORS *PROPERTIES:* Pre-installed w/ heavy duty castors featuring integrated levelling feet. Move your 1+ tonne table with ease, and use the levelling mechanism to level/ground your table when necessary - up to 20mm in adjustment: SHAPES - Round or Square. COLOURS - Yellow, Orange, Red, Black, Blue, Green or any custom Dulux powder-coat colour. MEASUREMENTS *TUBE DIMENSIONS:* 89mm x 89mm. *WALL THICKNESS:* 2.5mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-LEG-00	Custom legs: Type in e.g. “1000mm Overall Table Height, BLUE , SQUARE, CASTORS."	$0 Ex. GST	Custom Height/Colour/Shape Legs \| K28 quantity	$0

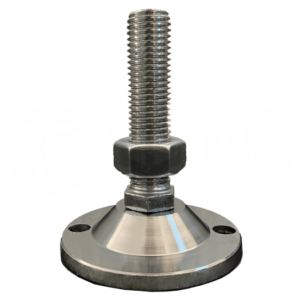

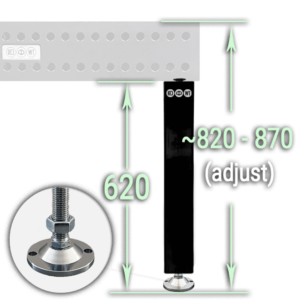

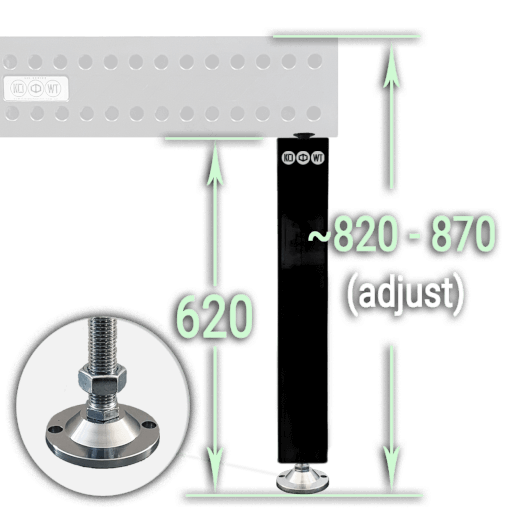

620mm Legs - Disc Feet \| K28 NOTE: 4 x LEGS SUIT ALL TABLES EXCEPT 1.2m x 2.4m (6 LEGS) & 1.5m x 3m (8 LEGS). Colours above are to be used as a visual representation only, product colour may vary. MATERIAL: MILD STEEL SHAPE: SQUARE COLOUR: BLACK FOOTING: ADJUSTABLE DISCS PROPERTIES: Pre-installed w/ disc footing and made from high tensile steel, this option is perfect for those requiring up to 60mm of adjustment, making it ideal for levelling your table on uneven floors. Pre-drilled holes are included for those who prefer to anchor the table with dynabolts: MEASUREMENTS *TUBE DIMENSIONS:* 89mm x 89mm. *WALL THICKNESS:* 2.5mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-DLG-62	Overall H. (mm): 820-870 Colour: BLACK Shape: SQUARE Footing: DISC	$150 Ex. GST	SHAPE COLOUR LEGS QTY* 620mm Legs - Disc Feet \| K28 quantity	$150

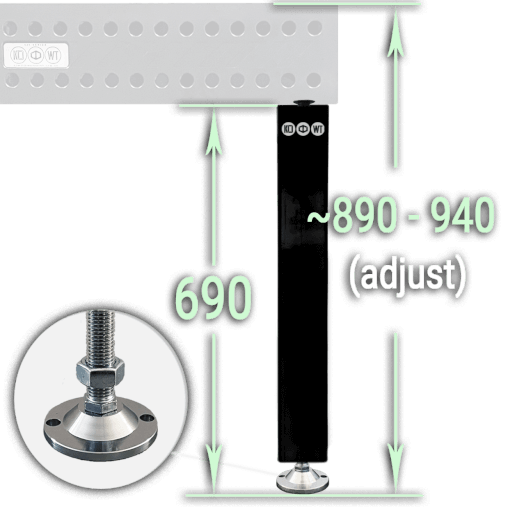

690mm Legs - Disc Feet \| K28 NOTE: 4 x LEGS SUIT ALL TABLES EXCEPT 1.2m x 2.4m (6 LEGS) & 1.5m x 3m (8 LEGS). Colours above are to be used as a visual representation only, product colour may vary. MATERIAL: MILD STEEL SHAPE: SQUARE COLOUR: BLACK FOOTING: ADJUSTABLE DISCS PROPERTIES: Pre-installed w/ disc footing and made from high tensile steel, this option is perfect for those requiring up to 60mm of adjustment, making it ideal for levelling your table on uneven floors. Pre-drilled holes are included for those who prefer to anchor the table with dynabolts: MEASUREMENTS *TUBE DIMENSIONS:* 89mm x 89mm. *WALL THICKNESS:* 2.5mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-DLG-69	Overall H. (mm): 890-940 Colour: BLACK Shape: SQUARE Footing: DISC	$160 Ex. GST	SHAPE COLOUR LEGS QTY* 690mm Legs - Disc Feet \| K28 quantity	$160

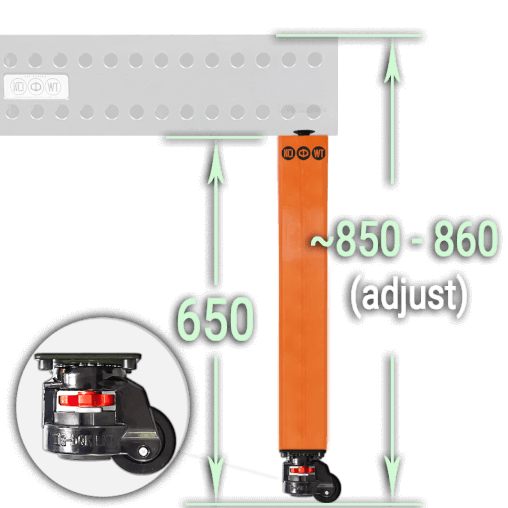

650mm Legs - Level Castors \| K28 NOTE: 4 x LEGS SUIT ALL TABLES EXCEPT 1.2m x 2.4m (6 LEGS) & 1.5m x 3m (8 LEGS). Colours above are to be used as a visual representation only, product colour may vary. MATERIAL: MILD STEEL SHAPE: SQUARE COLOUR: ORANGE FOOTING: LEVELLING CASTORS PROPERTIES: Pre-installed w/ heavy duty castors featuring integrated levelling feet. Move your 1+ tonne table with ease, and use the levelling mechanism to level/ground your table when necessary - up to 20mm in adjustment: MEASUREMENTS *TUBE DIMENSIONS:* 89mm x 89mm. *WALL THICKNESS:* 2.5mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-CLG-65	Overall H. (mm): 850-860 Colour: ORANGE Shape: SQUARE Footing: CASTORS	$190 Ex. GST	228.00 COLOUR LEGS QTY* 650mm Legs - Level Castors \| K28 quantity	$190

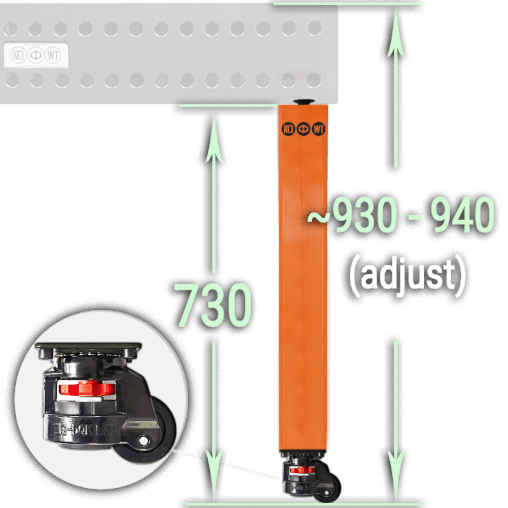

730mm Legs - Level Castors \| K28 NOTE: 4 x LEGS SUIT ALL TABLES EXCEPT 1.2m x 2.4m (6 LEGS) & 1.5m x 3m (8 LEGS). Colours above are to be used as a visual representation only, product colour may vary. MATERIAL: MILD STEEL SHAPE: SQUARE COLOUR: ORANGE FOOTING: LEVELLING CASTORS PROPERTIES: Pre-installed w/ heavy duty castors featuring integrated levelling feet. Move your 1+ tonne table with ease, and use the levelling mechanism to level/ground your table when necessary - up to 20mm in adjustment: MEASUREMENTS *TUBE DIMENSIONS:* 89mm x 89mm. *WALL THICKNESS:* 2.5mm. Questions? (03) 7020 0234 \| sales@koweldingtables.com.au	K28-CLG-73	Overall H. (mm): 930-940 Colour: ORANGE Shape: SQUARE Footing: CASTORS	$200 Ex. GST	SHAPE COLOUR LEGS QTY* 730mm Legs - Level Castors \| K28 quantity	$200

K28 QUICK INFO

The “28” refers to its hole size of 28mm.

Heavier, and more robust than K16.

Suited for medium to heavy duty fabrication (e.g. 2mm tube to bridge cranes).

Can’t decide on K16 or K28? Check out our more info page for a more in depth analysis.

SITE NAV

Every KO | WT product comes welded, assembled and machined to meet its precise tolerances.

K28 TOPS & LEGS

Use buttons to navigate through sections:

ↆ ↆ

ↆ ↆ

ↆ ↆ

ↆ ↆ

ↆ ↆ

ↆ ↆ

K28 SERIES TOPS & LEGS

Choose your custom size: In 100mm increments - between 0.5m x 1.0m all the way up to 3.0m x 1.6m!

MATERIAL: CAST or STEEL?

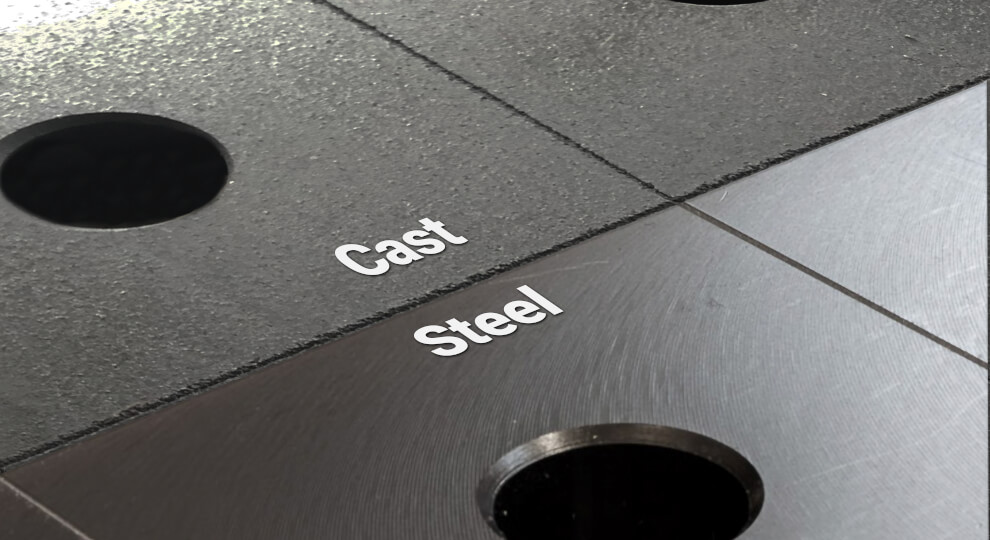

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

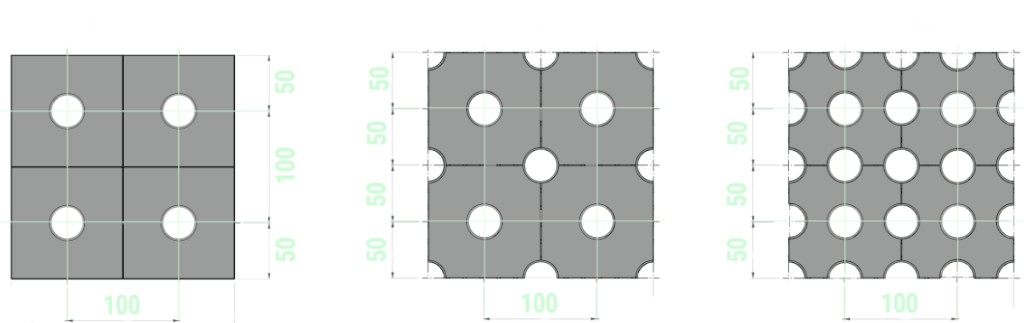

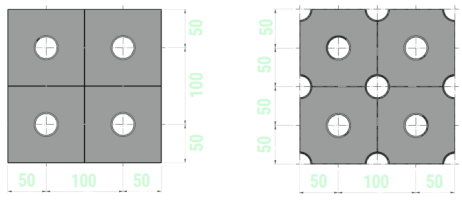

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

MATERIAL: CAST or STEEL?

COMPARE SURFACE OF MATERIALS:

TREATMENT: NONE or BURNISHED or NITRIDING?

HOLE GRID: STANDARD or DIAGONAL or 50mm?

TOLERANCES

LEGS

NOTE: 4 x LEGS SUIT ALL TABLES EXCEPT 1.2m x 2.4m (6 LEGS) & 1.5m x 3m (8 LEGS).

LET US KNOW WHAT YOU’RE AFTER, AND WE’LL MAKE IT HAPPEN!

ADJUSTABLE DISCS

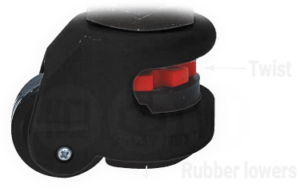

LEVELING CASTORS
